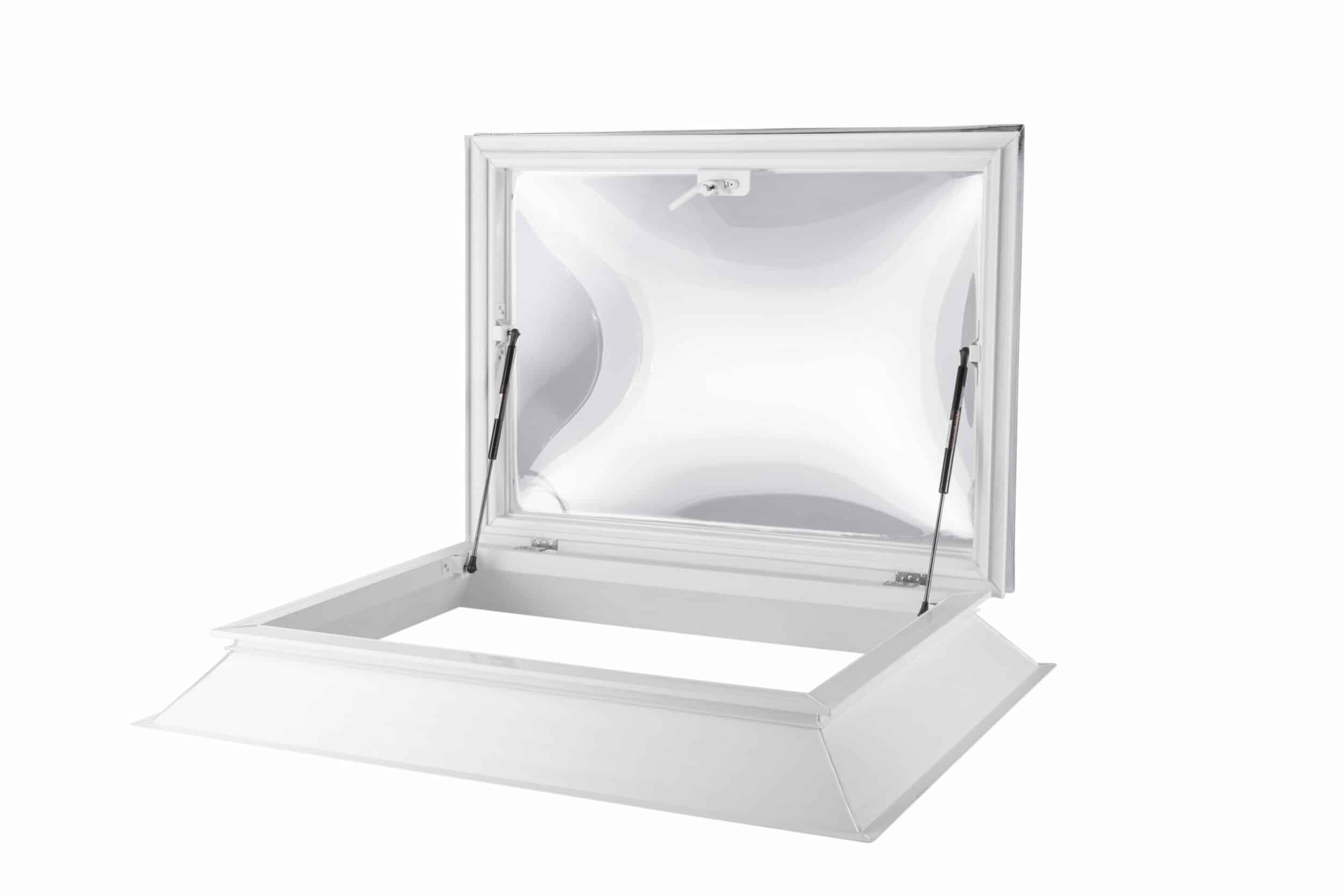

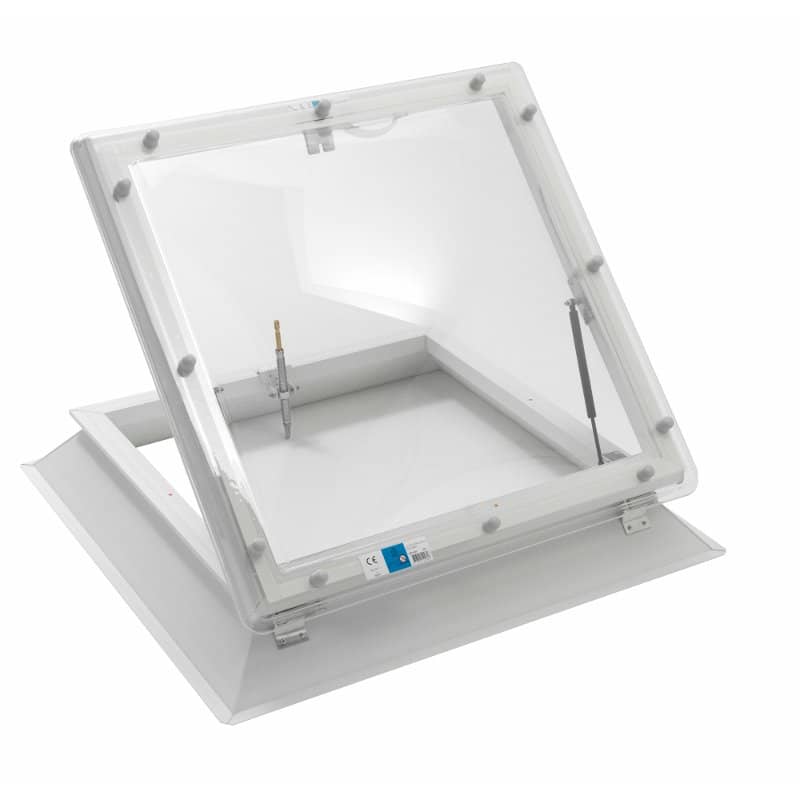

Coxdome Access Hatch Roof Dome for Builder’s Upstand

Specifying the Rooftop Access often avoids the need to provide other external facilities for gaining access to the roof. It can also be used as a means of emergency escape. In addition you can specify a version which can be manually opened with a spindle. This will allow controllable ventilation before the removal of the spindle pin provides the user with direct access to the roof. Please remember you will require a winding rod to operate. The Rooftop Access is available with either the 150mm or 300mm SPLAYED upstand and operates using gas assisted struts. All sizes listed are the structural opening sizes/internal sizes.

Please note: 150mm upstand option available and priced upon application.

Product Features:

• Opening angle of 85¬∞
• SF15, BF30, BF15 Splayed Upstands
• Optional controllable ventilation up to 300mm
• Fire resistance (EN 13501-1:2007): D
• EN 1873 Soft Body Article 5.4.3.2 (1200 Joules)
